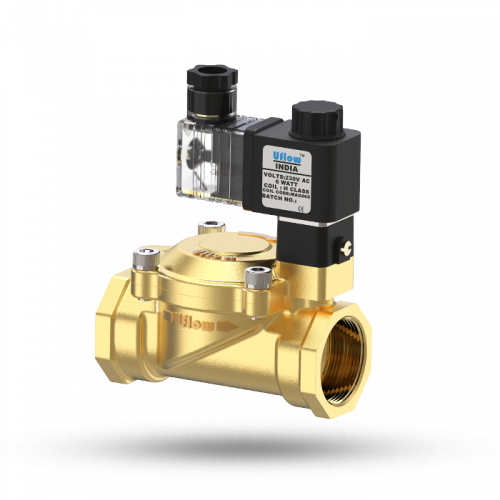

Solenoid Valve - Diaphragm Type - Uflow
Rs.4,500.00 Rs.5,500.00
MODEL PCN208BNEWV0 PORT SIZE 15mm BODY MATRIAL Brass ORIFICE 17 HSN CODE 8481 WARRANTY 6 Months CATEGORY Pneumatics, Valves | Solenoid Valve | Pilot Operated Valve
Diaphragm | Screwed End PRODUCT CODE LNE-0124
MODEL | PCN208BNEWV0 |
---|---|
PORT SIZE | 15mm |
BODY MATRIAL | Brass |
ORIFICE | 17 |
HSN CODE | 8481 |
WARRANTY | 6 Months |
CATEGORY | Pneumatics, Valves | Solenoid Valve | Pilot Operated Valve Diaphragm | Screwed End |
PRODUCT CODE | LNE-0124 |
Product Details
• Valve Information
• Port: Refer below technical data sheet (Available BSP / NPT)
• End Connection: Screwed / Flange
• Body Material: Brass
• Diaphragm & Media Temp:
Nitrile (NBR) | EPDM | Viton (FKM) |
-30° C to 90° C | -10° C to 140° C | -10° C to 180° C |
• Circumstance Temp: -10° C to 70° C
• Media: Air,Water,Chemical,Gas.
• Main Features: Internal Parts are in superior corrosion resistance steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment
•Operating Voltage & Power Consumption:
24AC | 110AC | 230AC | 12DC | 24DC |
7W | 8W | 8W | 10W | 11W |
• Optional Feature: 90% Power saver series also available, Manual Override.
• Coil Information
•Coil Features: High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as require.
•Note: Use of filter in the inlet port is recommended.
